MODEL: EEP SERIES

BELLOW MATERIAL: INOX ANSI 304

BODY MATERIAL: STEEL ST 37.2

FITTING MATERIAL: STEEL ST 37.2

DRAIN VALVE: INOX ANSI 304

CONNECTION TYPES:

JIS-10K / 20K FLOOR CONNECTIONS

CONNECTOR FLOOR DIN-16/25

CONNECTING ANSI FLANGE # 150

CONNECTOR S.W OR B.W

PRODUCT DESCRIPTION

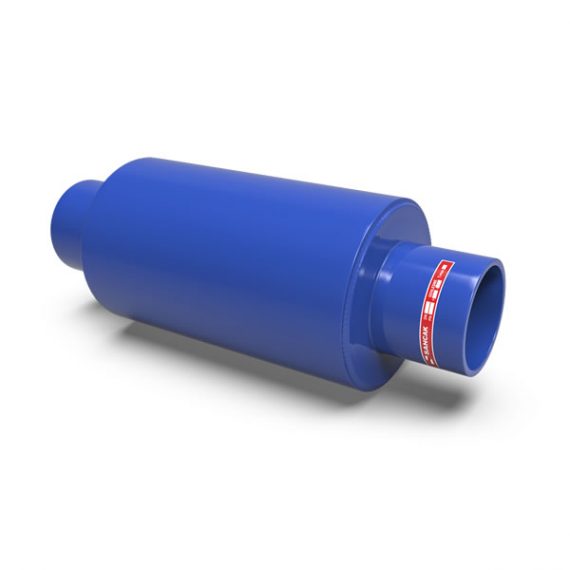

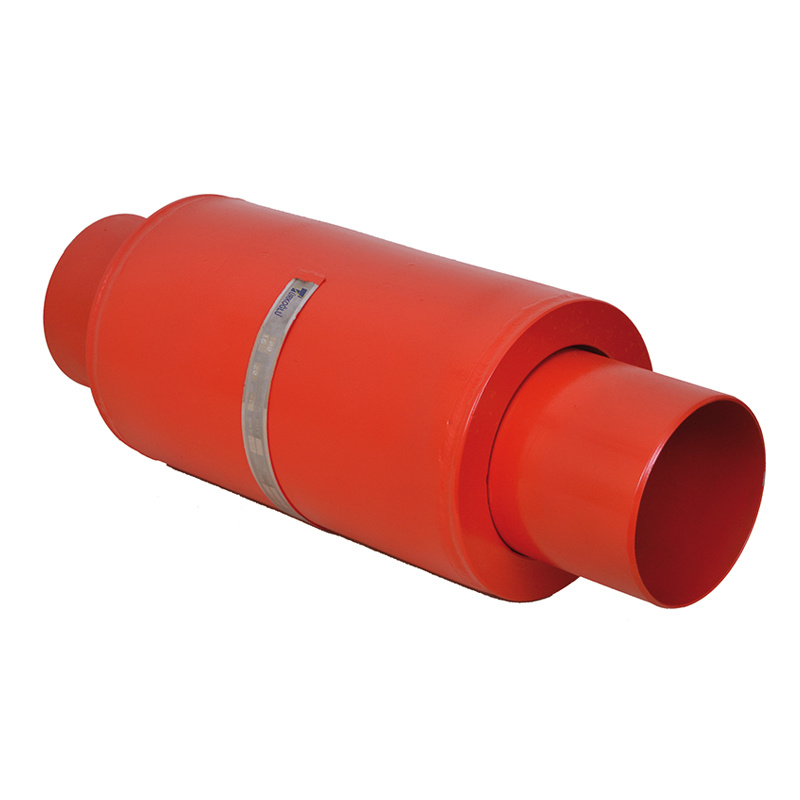

Shell expansion tube is a type of flexible coupling installed on the system of steam piping, hot oil, hot water, etc., which has the contraction function to absorb thermal expansion and reduce system vibration. pipeline.

Our casing tube expansion tubes are designed to withstand high temperatures up to 900 ° C and working pressures up to 40 bar.

The expansion pipe material used depends on the temperature and corrosion resistance requirements of the material application.

Expansion tubes come in a variety of types and are manufactured according to the requirements of the manufacturer and solvent standards.

The expansion pipe product is a specialized product, requiring the user to know parameters such as the using medium, size, pressure, working temperature, connection type and expansion expansion according to the design. .

Thereby, it is possible to choose the type of expansion tube used to suit the needs and the most optimal and effective use medium.
