MODEL: EEP SERIES
BELLOW MATERIAL: INOX ANSI 304
BODY MATERIAL: STEEL ST 37.2
FITTING MATERIAL: STEEL ST 37.2
DRAIN VALVE: INOX ANSI 304
CONNECTION TYPES:
JIS-10K / 20K FLOOR CONNECTIONS
CONNECTOR FLOOR DIN-16/25
CONNECTING ANSI FLANGE # 150
CONNECTOR S.W OR B.W
PRODUCT DESCRIPTION
THERMAL COUPLING PASTY
Roles and functions of Pasty offset thermal expansion joint?
Compensated thermal expansion joint has very high elasticity and heat resistance, it can operate in the environment up to 1000 degrees Celsius (depending on the type of material used), but the parameters are still guaranteed. body. Suitable for use in pipe projects, need elasticity, anti-vibration and especially high corrosion resistance. Helps control vibration, reduce noise, reduce tension, prevent thermal shock, compensate for deviations and movements, limit corrosion, eliminate pipe pressure, increase the life of the entire road system. pipes, which saves on maintenance costs and construction time
APPLICATION OF EXCLUSIVE THERMAL COMBINATION

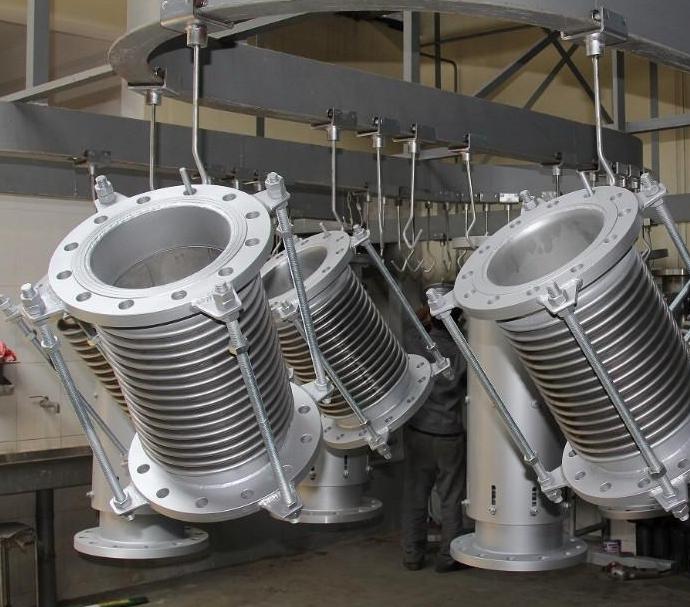

Expansion joints are used in industries such as: power plants, petroleum systems, offshore oil rigs, industrial pumps, compressors, air-conditioning systems, water supply and drainage systems. , boilers, boilers, paper mills, weaving, dyeing, shipbuilding, hydropower, thermal power, other mechanical equipment …
Product Description

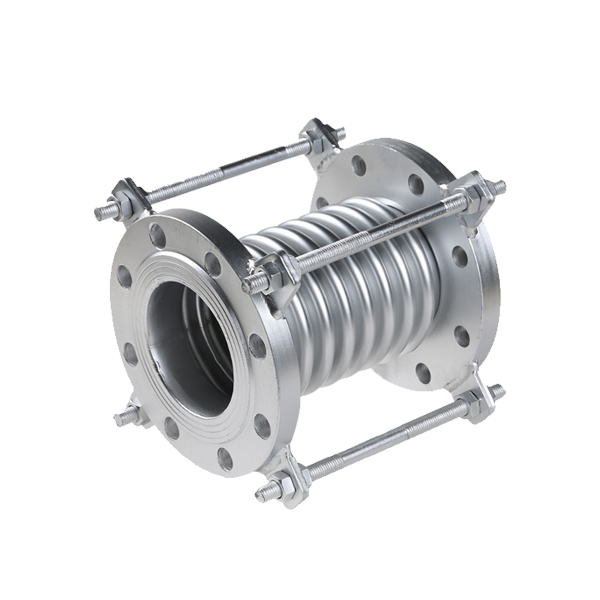

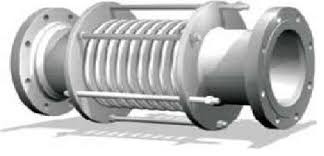

RELAXED COUPLING installed in the pipe allows expansion or contraction during operation due to the effect of high temperatures.
The control ring is provided for reinforcement purposes against internal pressure and the balance of bellows expansion.
No need to retightening and replacing due to aging since the pack is not used. Easy to maintain and manage.
Simple structure since flanges, short pipes and bellows are agreed.

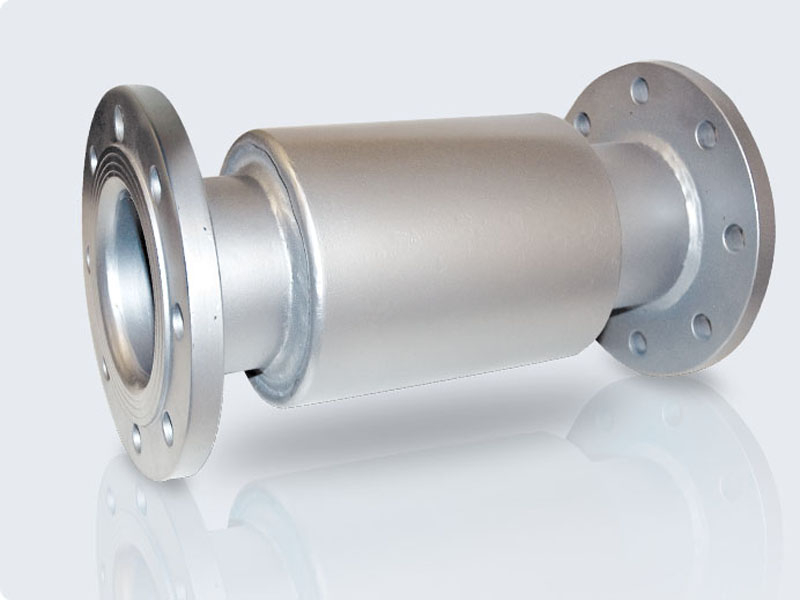

External pipes are attached to protect the bellows from damage due to external influences.
Stainless steel inner tube is mounted to prevent loss of fluid pressure, vibration, impact, corrosion, etc.
Parts made of stainless steel provide high corrosion resistance and ensure distinguished durability.
MODEL: EEP SERIES
BELLOW MATERIAL: INOX ANSI 304
BODY MATERIAL: STEEL ST 37.2
FITTING MATERIAL: STEEL ST 37.2
DRAIN VALVE: INOX ANSI 304
CONNECTION TYPES:
JIS-10K / 20K FLOOR CONNECTIONS
CONNECTOR FLOOR DIN-16/25
CONNECTING ANSI FLANGE # 150
CONNECTOR S.W OR B.W
